    Basic Info.
    Processing customization:
    Yes
    Model:
    PWN-840A
    Measuring range:
    5~2000mg/L
    Measuring object:
    chemical oxygen demand
    Measurement accuracy:
    0.01mg/L
    Digestion temperature:
    165℃
    Digestion time:
    15min
    Size:
    80mm×230mm×55mm mm
    Weight:
    0.5 kg
    Applicable scope:
    Applicable to COD, ammonia nitrogen, total nitrogen, and total nitrogen
    Product Description

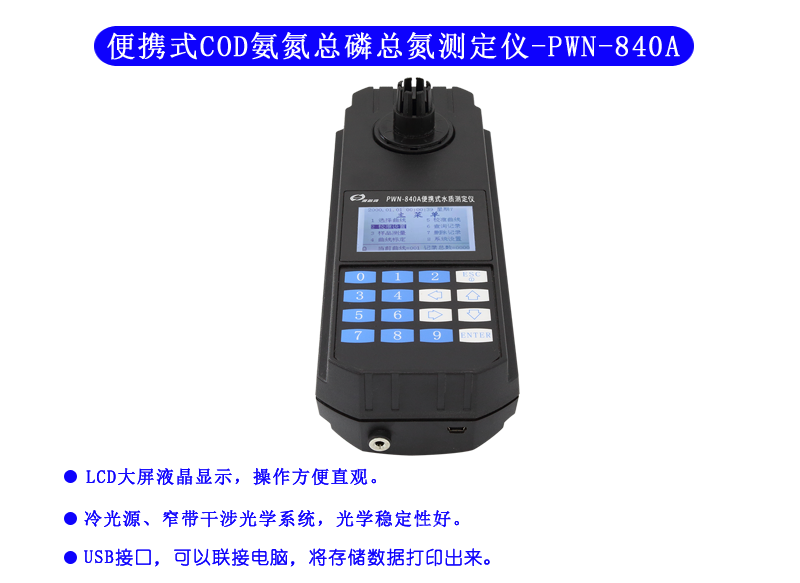

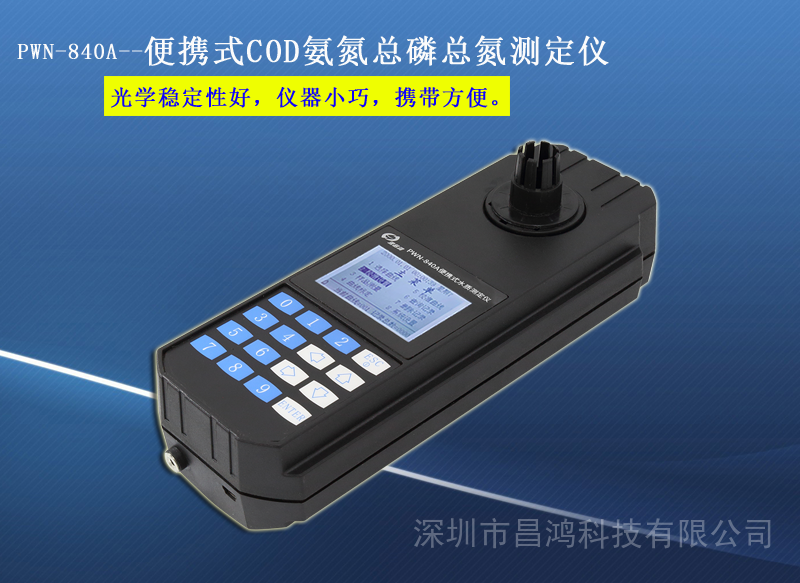

    --Handheld portable design

    --Equipped with 4-hole digester (or select 16 water samples)

    --Suitable for field and field use

    [Technical parameters]

    1] Measurement range: (over dilution measurement)

         COD：5~2000mg/L

    Ammonia nitrogen: 0.02~25mg/L

    Total phosphorus: 0.00~10mg/L

    Total nitrogen: 0.05~100mg/L

    2) Error of indication value:

         COD：≤±5%（F.S）

    Ammonia nitrogen: 3%(F.S)

    Total phosphorus: 5%(F.S)

    Total nitrogen: 5%(F.S)

    Repeatability: 3%

    4] Optical stability: instrument absorbance drift within 20min less than 0.002A

    5] Chlorine interference resistance: 2000mg/L(COD determination)

    6] Weight: 0.5kg

    7] Appearance size:
     Main frame 80mm 230mm 55mm

    Digester 105mm 160mm 90mm



    [Product Features]

    1] The digestion instrument is separated from the analyzer, which does not affect the measurement accuracy. Temperature PID automatic temperature control, timing.

    2] LCD large screen LCD full Chinese display, easy to operate intuitive.

    3] High-performance ultra-low power consumption 16-bit microcontroller, and the host is equipped with high-capacity rechargeable lithium battery, which can be used for up to six months.

    4] Compact instrument, easy to carry on-site testing. A variety of power supply methods, including car cigarette lighter, high-capacity convenient lithium battery and 220V power supply, get rid of the trouble of not being able to detect in the field because of the lack of conventional power supply.

    5] Cold light source, narrowband interference optical system, good optical stability.

    6] Digestion instrument can be equipped with convenient high-capacity lithium battery to meet the determination of large quantities of water samples.

    7] It can store 30 standard curves and 199 measured values (including concentration value with time label, absorbance value and transmittance). The curve can be calibrated and saved by itself.

    8] Data power failure protection function.

    9] The main engine casing adopts molded ABS material, which has good corrosion resistance, waterproof and dustproof performance.

    10] High-strength suitcase, beautiful, strong, easy to carry.

    11] 30 standard curves and 199 measured values (including measured values with time labels of year, month, day, hour, minute and second, absorbance value and transmittance) can be stored.

    12] USB port, can be connected to the computer for recording and reading or printing stored data.
